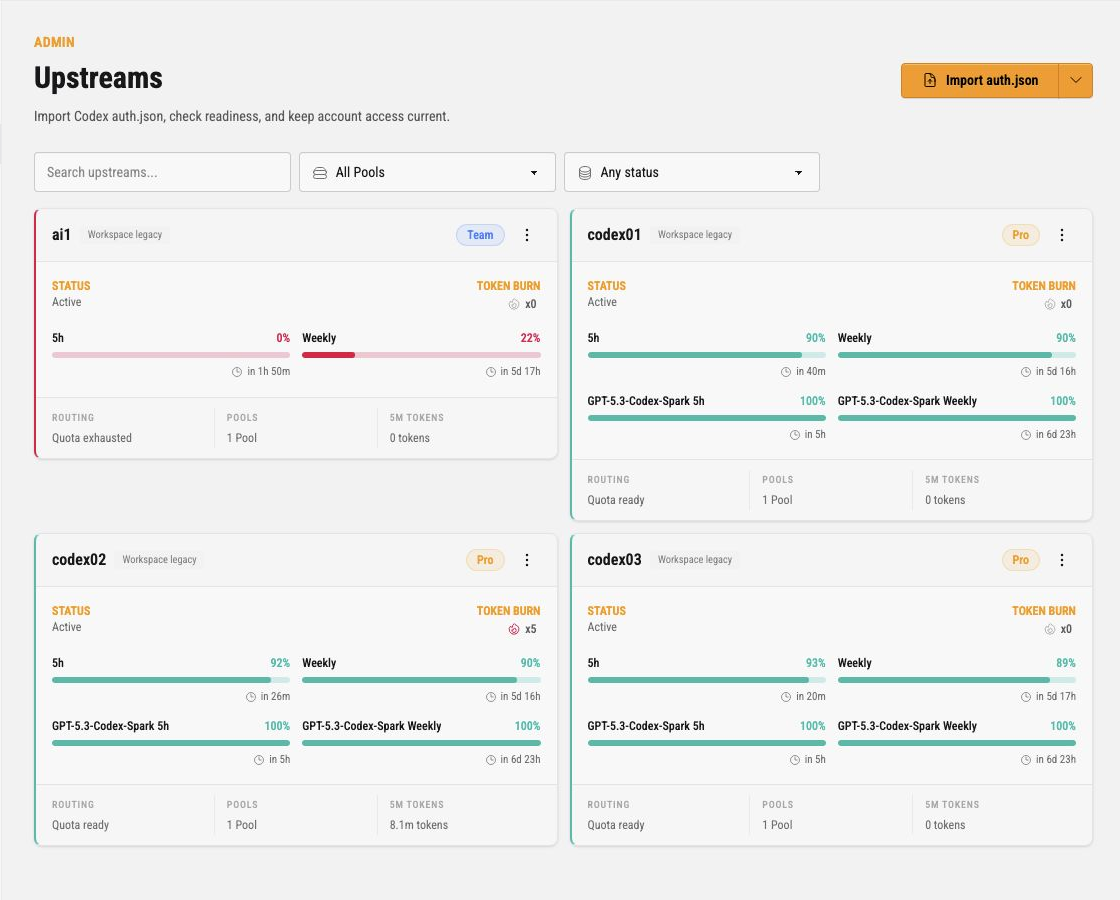

Upstreams

The Upstreams page is the operator surface for Codex account capacity. An upstream is an account identity that Codex Pooler can assign to one or more Pools and consider for runtime routing when it is active, fresh, compatible, and supported by usable quota evidence.

Use this page when you need to answer:

which upstream accounts are available
which Pool each account is assigned to
whether an account is active, paused, stale, or blocked by quota evidence
whether token refresh or reauthorization needs attention
how recent token usage compares with observed quota windows
which account actions are available without exposing raw credentials

The page is metadata-only after linking or import. It shows operator labels, workspace and plan badges, safe status labels, quota-window evidence, token counters, assignment counts, sanitized subject references when needed, and links to related logs. It does not show prompts, responses, files, websocket frames, bearer tokens, refresh tokens, provider cookies, OAuth provider payloads, raw OpenAI user subjects, or stored Codex auth.json contents.

What an Upstream Controls

An upstream account is not a client credential. Clients authenticate with Pool API keys. Codex Pooler then chooses an eligible upstream assigned to that Pool.

An upstream controls:

encrypted account credentials linked through OpenAI OAuth or imported from Codex auth.json
account lifecycle state, such as active, paused, refresh due, or reauth required
Pool assignments that make the account available to routing boundaries
quota and token freshness evidence used by route eligibility
model and route compatibility evidence observed from the account
operator-facing labels used in cards, logs, audit events, and recovery views

Routing still happens at request time. A visible active upstream can be skipped if it is not assigned to the Pool, does not support the requested model or route shape, has stale credentials, is temporarily demoted, or lacks usable quota evidence.

Page Actions

The page header exposes the account onboarding actions as separate buttons:

Link, for linking a new upstream account through OpenAI authorization without handling auth.json. The dialog asks for a Pool, then offers via OAuth (browser) or via Device Code
Invite, for onboarding a person who will provide or operate an account through the browser UI
Import, for adding an account from Codex CLI or Codex Desktop auth.json credentials

Prefer Link for new operator-managed upstream accounts when browser authorization is practical. It stores resulting credential material through encrypted upstream secret storage and keeps the admin surface metadata-only.

Invite onboarding and the OAuth device-code fallback use OpenAI’s Codex device-code authorization. This setup is only for those device-code paths; browser OAuth linking does not depend on it. Before using an invite or fallback flow, a personal ChatGPT account should have Enable device code authorization for Codex enabled in ChatGPT Settings > Security. Workspace-managed accounts may need a workspace admin to enable device-code login for Codex in workspace permissions. If OpenAI blocks device-code approval, the invite or fallback flow may remain pending but the upstream will not become ready.

The search box filters upstream cards by account label or safe metadata. The Pool filter narrows cards to accounts assigned to a specific Pool. The status filter narrows cards by lifecycle or readiness state.

Account Cards

Each account appears as a card. The header shows the operator label with a workspace chip when the account has a workspace label, the access-token expiry underneath, the plan badge (for example Pro 200), and the dotted action menu. Clicking the account label opens the upstream cockpit.

The card body is split into status, token burn, quota windows, provider credits, banked resets, and footer metrics.

Card area	Meaning
Status	Current lifecycle and route-readiness state for the account. Active means the account can be considered, but final routing still checks Pool assignment, model support, credential freshness, and quota evidence.
Token burn	Recent token multiplier shown from observed usage pressure. It is a quick warning signal, not a billing ledger.
Quota bars	Observed account and model-specific quota window fullness, separate from provider credits. An included window at 100% used remains 0% remaining; a credit balance never replaces that percentage. Provider credits have their own observed balance and baseline meter, local policy and availability explanation.
Routing	Compact lifecycle-aware runtime routing readiness summary. It separates identity lifecycle, Pool assignment, credential freshness, and quota evidence so operators can see why this account is likely eligible or blocked before request-specific checks.
Credits	Provider-credit row: the credit balance as a percentage of its observed baseline, the local policy (`Enabled` or `Disabled`), and the balance. It appears only for a positive or unlimited balance. Opening the row opens the provider-credit policy dialog. See Use provider credits.
Banked resets	Five-segment meter of the reported saved resets with an `x3`-style count, the auto-redeem state (`Auto redeem active` or `inactive`), and the next expiry. The meter appears only when at least one saved reset is available; a short status row for active or unresolved recovery can remain after the count reaches zero. `View status` opens the saved-reset dialog. Opening the meter or the card’s `Saved resets` dropdown action also opens that dialog for policy editing and the latest account result.
Pools	How many Pools currently assign this upstream account.
Tokens/5m	Recent token volume observed for this upstream over the short rolling window.

The included account percentage follows the provider’s reported usage window and remains separate from the credit balance, including when included quota reaches 100% used. The provider-credit summary retains the current observed balance and, only when a finite observed baseline exists, a distinct credit-balance percentage truncated to one decimal place with a decimal point, such as 99.9% (exactly 0 and 100 show as 0% and 100%). Its progress value and accessible label use the same precision. That retained baseline is not a provider-reported original allowance, total capacity or spending permission; the striped credit meter is an observation, not evidence of active debit. Disabling credit admission keeps the balance visible. The Credits row is hidden for explicit zero and for unknown/unreported balances; these remain distinct facts in the policy dialog. Finite positive balances and explicit Unlimited display independently of plan labels, and unlimited or windowless balances without a baseline receive no fabricated 100%. Provider credit units are not currency and must not be compared directly with the monetary balance shown in ChatGPT billing.

Fresh reset-bearing windows remain the normal authority for quota readiness. When the provider reports no account windows, independently attested ordinary provider permission can still serve requests without inventing a quota window or identifying the billing source. A standalone provider-credit summary instead shows the observed finite balance, Unlimited, or Balance unavailable, separately from local policy and request availability; no missing denominator, percentage, duration or reset time is invented.

Provider-attested availability remains conservative. A credit fallback requires current positive credit permission with the applicable resource and spend controls satisfied. Workspace, authentication, spend-control, model-specific, additional-limit and runtime hard denials still block; contradictory, unknown, stale, credential-mismatched or malformed evidence creates no new credit authority. Plan badges, model catalog membership, an additional meter’s normal-model association, historical successful requests and the policy checkbox are not provider permission.

This state comes from Codex Pooler’s direct provider usage response. Current Codex client quota projections omit the raw availability flags, so a client-side quota snapshot cannot independently confirm the same no-window observation.

Use provider credits

Use provider credits is an upstream-level admission policy, enabled by default for existing and newly added upstreams. It applies to every Pool using that upstream identity. Changing it requires operator authority across all of those Pools; it is not a per-Pool spending choice.

For each request’s compatible accounts, Codex Pooler considers included capacity and independently valid ordinary provider permission first, enabled usable provider credits next, and authorized blocked-request banked-reset recovery only when neither can serve the request. Proactive threshold and expiry reset policies remain separate. Weekly-only capacity, ordinary provider permission and exact-model allowances retain their independent evidence requirements. A balance alone does not make a blocked account routable, and the option never enables automatic reset redemption or changes its reserve, timing, confirmation or other safety checks.

Disabling provider credits preserves independently verified non-credit capacity and permitted reset recovery. It denies credit-dependent capacity, including a credit-only account. A legacy windowless observation whose resource basis is unknown keeps only its existing default-on behavior; after opt-out, fresh independent non-credit evidence is required. Natural quota restoration can resume included service without changing the saved policy. The provider’s balance remains visible when disabled, and public usage responses continue reporting provider facts rather than zeroing or rewriting them to reflect local policy.

Credit permission must be fresh, coherent and current for the stored credentials. Routing uses positive provider authority and checks the requested model, transport, Full/Lite mode and applicable resource limits. A catalog entry, plan name, observed balance or historical successful probe cannot supply missing permission. Authentication, account lifecycle, runtime denials, model or additional limits, spend controls, circuits, pending recovery and final send admission remain independent requirements.

The provider’s permission is an admission signal. It does not establish that an accepted request debited credits or grant every model an entitlement. Bounded real-provider comparisons establish only the observed request contracts; they do not turn the tested model names into a permanent permission list. Contradictory, unknown, stale or malformed observations do not create credit authority.

The list and cockpit show a compact provider-credit row alongside the quota meters, with the observed balance, local policy and an observed-baseline bar when that reference exists. The row places Credits and the percentage above the bar, with Enabled/Disabled at bottom left and the numeric amount at bottom right. Balance and baseline values use comma grouping and truncate to whole numbers without a repeated unit suffix; a positive balance below one is <1. Exact decimals remain in the source and optional hover title. Hover shows a short availability summary and identifies the observed reference; authorized operators can click the row to open the provider-credit policy dialog. When the row is hidden, the list menu and cockpit action retain the currency-dollar policy entry. The dialog keeps balance and availability details in a disclosure and places Cancel and Save policy in the same footer used by other policy dialogs. The reference is not a purchased total, and no credit expiry is invented from a quota reset. Fresh enabled usable credits show Routing ready via credits with the normal ready tone when identity, assignment and circuit checks permit it. Included quota can remain exhausted at a red 0%; disabled, blocked and unknown credit states do not gain ready presentation. Request-specific checks still apply. Disabled, unavailable and unverified capacity remain distinct. The summary does not establish a credit debit or guarantee a particular model or route, and evidence from one transport does not verify another.

Saving the option changes admission, not the provider’s billing system. A final shared-database read immediately before a new provider send honors a revocation committed before that read, including on reused websocket owners. A change after final admission does not cancel that already admitted response, and other clients or installations using the same provider account may still spend credits. Use provider credits is not a provider spending limit or a guarantee of zero debit.

An accepted banked reset and confirmed included restoration are different events. Credit-capable responses cannot confirm a reset. Pending recovery keeps its existing latch; matching fresh included evidence is required, or a single existing guarded probe must be independently incapable of succeeding on provider credits. Credit availability and saved-reset status are displayed separately.

Saved resets

Account cards show the banked-resets meter only when sanitized usage observations report at least one available reset. Common cockpit labels are N saved resets, No saved resets, Saved resets unavailable, and Saved resets not reported. When sanitized saved-reset observations include expiration metadata, the badge title, cockpit summary, and saved-reset dialog also show the next expiration time. The meter and the card dropdown action Saved resets open the saved-reset dialog.

Click a future expiration countdown in the saved-reset dialog or upstream cockpit, or choose Download reset calendar from the cockpit’s Actions, to download an iCalendar (.ics) file containing all reported upcoming banked-reset expirations for that upstream. Each calendar event includes the upstream label, the exact expiration time and a link back to the account. Times are exported in UTC; your calendar displays them in its selected timezone, including daylight-saving changes. Expired and unknown dates are not exported. The file is a snapshot: importing it does not subscribe to updates, and redeeming a reset later does not remove its imported event. The export uses your existing operator access and does not require a Google Calendar or other calendar-provider integration.

Each event is a one-minute calendar marker that starts at the expiration instant. The reset expires at the start of the marker; the displayed duration does not extend its validity.

Redeem one reset

The saved-reset dialog shows current bank inventory, reported expirations, auto-redemption policy and the latest recorded account status. Expiration rows are informational; they do not select a particular credit. The dialog and cockpit require explicit confirmation before queueing one account-level manual recovery attempt. The confirmation explains that the provider may apply the reset before quota checks finish, that verification can take a few minutes, and that you can leave the view and return. Choose Redeem one reset to submit or Keep resets in bank to dismiss the confirmation. Saving auto-redemption policy does not queue a redemption.

Manual redemption requires a usable account with credentials, at least one Pool assignment, a reported positive saved-reset count and reported weekly or monthly quota details to verify recovery against. If those details are unavailable, the request is refused before spending a reset; wait for the next quota check and try again. It is unavailable while a manual request is accepted, while the latest reset is still in progress or its outcome is not established, after a reset that was applied while quota stays blocked, and after a confirmation window that ended without confirmation. Another redemption normally waits until a usage report shows quota recovered. A historical timeout with missing verification details can permit a new explicit manual attempt once a later weekly quota cycle is independently confirmed and the consume cooldown has passed, even if that later cycle is already exhausted. The old receipt keeps its recorded timeout; it is not relabeled as a confirmed reset. Automatic redemption retains its separate safeguards. The control names the current blocker as its reason. Submitting disables the control while the request is being acknowledged; an already queued or in-progress request directs you to its status rather than asking you to submit again.

Closing the dialog or navigating away does not cancel committed work. Reopening the bank dialog or cockpit reads the latest persisted account result, including after a reconnect or from another operator view. This is the latest account receipt, not an unlimited history. When both exist, Request shows the manual request and Latest reset shows the account’s latest recorded result. They are separate: a job’s state does not prove provider application, and an older account result is not attributed to a newer request. A completed request is not repeated beside a latest reset, which already holds the account’s newest result. Job cleanup does not erase the retained latest account receipt; a newer account lifecycle replaces it. Routine background recovery remains visible in Jobs.

Read reset status

Provider application, quota verification and current serving readiness are separate facts. Read the status alongside the Routing line, or the routing verdict in the cockpit; an applied reset does not by itself make the account ready for every request. While the account cannot route, the line also gives the reason.

Status	Meaning and safe action
`Request accepted — queued` / `Request accepted — processing`	The manual request is queued or being processed. Nothing reaches the provider while it is queued. Use Refresh instead of submitting another request.
`Request completed` / `Request did not complete` / `Request cancelled` / `Request stopped`	The manual request’s job has finished; its state alone does not say whether a reset was applied. Read the latest reset before acting. When no account result is recorded, the request says so.
`Reset request in progress`	Application is not yet confirmed. This does not establish that a reset was spent.
`Reset outcome not confirmed`	The request may have reached the provider, or application details are unavailable. Do not submit another redemption while the outcome is unresolved. The warning stays visible while live updates are paused or disconnected.
`Reset outcome not recorded`	The latest record carries no tracked outcome. It does not block another redemption.
`Reset applied — verifying quota`	Application is recorded, but quota availability is still being verified. Verification does not start another redemption.
`Quota confirmed`	The new quota cycle is confirmed. The Routing line still determines availability; the provider outcome is shown below the status when the record does not establish an applied reset.
`Recovery verified by a request`	A request succeeded on the new quota; the usage report has not caught up yet. Availability remains subject to the existing recovery limits.
`No saved reset was available` / `Nothing needed resetting`	The provider reported a definite no-op. No reset consumption is confirmed. These states do not recommend another redemption.
`Reset was not applied`	The request stopped before reaching the provider. Another action still requires current account eligibility checks.
`Quota is still unavailable` / `Quota confirmation timed out`	Verification reblocked or its recorded confirmation window expired. The status says the reset was applied, or that the spent reset is not refunded, only when the provider applied it; otherwise the provider outcome is shown below it. Neither state refunds a reset or authorizes another redemption.

If the clock passes the deadline while the persisted verification is still pending, the view says Deadline passed — checking quota. This reports elapsed time, not a new outcome. Consume and deadline timestamps appear only when recorded; there is no percentage progress or guaranteed completion time. Usage unavailable is a separate token-accounting state.

Normal serving account cards do not add a historical reset panel, including when live updates are paused. Active requests, verification and unresolved outcomes use a compact status row with View status. The bank dialog and cockpit retain the detailed latest receipt; inactive details are collapsed by default and can be opened for review. An already open active disclosure stays open when its status changes. The five bank segments always show the current inventory, independently of receipt history.

During post-reset verification the account card keeps the last verified quota percentage and reset time until a usage report confirms the new cycle. The Quota evidence dialog labels that value Last verified quota next to its source and shows New quota report awaiting verification only when a qualifying new report exists. That report has not yet replaced the accepted quota cycle. A fresh source in advanced details means the source observation is fresh; it does not mean the new cycle has been accepted. An old exhausted percentage is therefore not proof that application failed, and an unverified new report is not proof of readiness.

Once matching provider quota confirms recovery, the quota display and routing use the recovered cycle without waiting for an older exhaustion report to expire. Other quota limits, later provider refusals and routing protections still apply.

Status and read-only quota evidence update while their disclosures or the bank dialog are open. Policy edits remain in place as inventory and status change. Refresh rereads stored account data only: it does not contact the provider, redeem another reset, clear a provider polling pause or resume paused live updates. While a request, a reset or its verification is still open, Quota checks are delayed explains unavailable or provider-paused checks, with a known pause deadline when available. Pausing live updates or losing the connection does not stop an open operation; its status then reads Live updates paused or Live updates disconnected. A finished receipt keeps its own status and shows a known check pause as a time. The disconnect notice of the list, the bank dialog and the cockpit says the reset continues only while that view shows one still open. While disconnected, reset actions remain unavailable until reconnection has read current stored status. If access to the account is removed, its open view closes.

Automatic redemption

Auto redemption is a per-upstream opt-in policy available from the account-card Saved resets dialog and the upstream cockpit. New accounts default to auto redemption off. Operators choose whether request-driven automatic redemption waits until weekly or monthly account quota is blocked or may start earlier when fresh weekly or monthly account quota evidence shows every eligible candidate account is near the configured Near-limit threshold. Those are the only immediate request recovery paths: request traffic does not own expiration rescue. Exhaustion of the 5-hour window alone never starts automatic redemption, and a 5-hour window with room left does not hold it back once the weekly or monthly window is spent. A reset restores only the weekly or monthly window, so automatic redemption spends nothing while the 5-hour window is spent as well. The Natural reset buffer prevents request-driven exhaustion and threshold recovery from spending a reset when weekly or monthly account quota will reset naturally soon. For traffic-independent scheduled rescue, the ordinary exhausted path and the per-account threshold path also require the configured buffer. A scheduled exhausted path may instead proceed when fresh expiration evidence shows the saved reset expires before the natural long-window reset. Resets to keep reserves saved resets from automatic use.

For already-authorized blocked-request recovery, Codex Pooler prefers an eligible account whose saved reset has the earliest reliable future expiration. Priority requires fresh, authoritative and complete expiration evidence for that account. Equal deadlines and accounts with unknown or unreliable expiration evidence retain their original relative order. Expiration priority is considered only after the existing eligibility checks; it creates no new permission to spend a reset. Included capacity and independently valid ordinary provider permission remain first, enabled usable provider credits next, and banked-reset recovery last. This preference selects an account, not the globally earliest physical credit, and does not change manual account selection, threshold recovery or scheduled rescue.

Automatic recovery coordinates only the compatible accounts considered together for that request; separate partially overlapping groups are not treated as one global lock. After any applied redemption, automatic work observes a fixed thirty-minute protection period and waits for definitive evidence before another automatic consume. The system may also preserve a successful near-limit route when another compatible account has fresh usable capacity. Stale, incomplete, incompatible, disabled, or non-routeable evidence never creates that veto. Hard quota exhaustion keeps its original behavior, and only continuations whose pin is durably verifiable — a resolved prior-response anchor or file affinity — bypass the veto; a websocket-bound continuation or a newly started session on its first turn keeps its route but does not bypass it. Manual and scheduled work can record recovery state, while routine automated recovery remains centrally visible in Jobs.

Request-driven automatic redemption spends at most one saved reset per request, whichever trigger redeems it. Once a request has redeemed an account’s saved reset, with its quota verification pending or the reset confirmed, none of its later checks of its accounts redeems another. That includes a retry over the accounts the request has left and the check of accounts it first left out. A request that no account can then serve is answered with the retryable 503, which carries no reset time, rather than the Pool’s usage limit, because the redeemed account’s return is not known.

Two circuit fences keep automatic recovery conservative without changing circuit policy. The existing circuit-eligible capacity fence applies only to threshold-pressure recovery: a compatible sibling that is still circuit-eligible and has fresh usable quota preserves the successful route and prevents a reset. The transient-circuit fence is separate. It applies to both gateway-auto triggers — blocked long-window exhaustion and threshold pressure — when a compatible sibling was excluded only by circuit state and still has usable quota. Both triggers wait for one attempt-owned failed half-open recovery before a saved reset can proceed; an open circuit with a future recovery boundary, a pending half-open probe, or a circuit that has closed during revalidation keeps the reset unspent.

At the irreversible gateway-auto decision, the system locks the compatible upstream-identity cohort, then the target Pool assignment, then every referenced circuit row in one ordered batch. A recoverable transient circuit returns the exact noop gateway_auto_sibling_transient_exclusion with applied=false; it creates no redemption claim and makes no provider reset call, while the original route or quota result remains in place. Threshold-pressure keeps its historical exception for a durably verifiable hard-pinned continuation. A hard-pinned exhaustion path never spends a saved reset: it returns pinned_continuation_unavailable with zero automatic consumes. open_no_probe is deliberately not a transient-circuit veto because it has no deterministic recovery boundary.

Verification does not require a live reset. Confirm the bounded gateway-auto result code and applied=false through the normal sanitized logs or test coverage, and use circuit readiness separately to understand whether a lane is currently blocked or recovering; the recovery marker does not add a new admin state, readiness widget, or monitoring dashboard series.

The 24-hour horizon is a scheduled observation and consideration window, not an immediate-consumption deadline. A known saved reset inside that window can be considered without generative or other runtime traffic only after canonical scheduled reconciliation has persisted current quota and saved-reset evidence for the upstream identity. Scheduled rescue then requires one of three conditions: B1 long-window exhaustion, B2 the configured threshold reached for that identity, or B3 the final inclusive 90-minute last call. B1’s ordinary exhausted path and B2 require the configured Natural reset buffer. B1 may bypass that buffer only when a fresh expiration observation shows the saved reset expires before the natural long-window reset (E < R). B3 requires positive long-window usage, fresh expiration evidence, and E < R. Inside the 24-hour consideration window, successful expiration observations are refreshed on a shorter schedule, and failed refreshes use progressively shorter retry spacing as expiration approaches. Oban deduplicates scheduled work as one incomplete job per upstream identity, then revalidates the active assignment, policy, count, quota, expiration evidence, and winning condition before it can consume a credit.

A background expiry consume creates neither a request probe nor an accounting request. If immediate confirmation is incomplete, routine scheduled recovery keeps the established attempt and, when an upstream requires a selected saved reset, keeps that same selection. Recovery is write-bounded, then becomes read-only after those limits are exhausted. It remains fail-closed until definitive fresh evidence confirms recovery or reblocks the account; time alone does not release it. Recovery status is centrally visible in Jobs. The guarded one-shot request probe belongs only to redemption initiated by a runtime request.

Saved reset observations and redemption attempts stay metadata-only on upstream_identities.metadata under saved_resets and saved_reset_redemption. The saved-reset observation may include sanitized expiration rows in available_expirations, where each row has expires_at, a pooler-owned durable first_seen_at, and granted_at only when the upstream supplied a valid timestamp. Legacy available_expires_at stays available for compatibility, and next_expires_at, expires_observed_at, and expires_refresh_attempted_at remain sanitized aggregate fields. A returning expiration rematerializes its original first_seen_at; missing or invalid provider timestamps stay unavailable and are never guessed from the expiration.

After a provider accepts a reset, one triggering request can hold a pooler-generated, one-shot lease while the account awaits confirmation. The lease is internal non-secret correlation material, not a client credential or provider secret. Its persisted scope is exact: Pool assignment, upstream identity, effective model, and route class. The token and full scope never appear in cards, cockpit views, logs, audit records, request metadata, or public APIs.

The lease is irreversible. Only a matching guarded success before the confirmation deadline, admitted on independently verified non-credit capacity, can confirm the recovery window. Available or unknown provider-credit capacity makes such a success ambiguous and prevents that confirmation probe, even when the local credit option is disabled. A failure, cancellation, timeout, scope mismatch, or success at or after the deadline never unlocks or replaces the lease or spends another reset. Fresh matching included-quota evidence still provides the final recovery or reblock decision.

Operators can configure the optional upstream_saved_reset_banked_first_seen alert rule to notify each time a new saved reset appears for a matching Pool assignment. The evaluator uses a stable v2 upstream-identity key that includes neither reset_expires_at nor any expiration instant: saved resets first seen in the same evaluation aggregate into one candidate and one upstream-global incident, with impacted Pool targets aggregated on that incident. A later grant, one first seen after everything an earlier incident reported, opens a new incident and alerts again; the same saved reset never alerts twice. Candidate eligibility uses first_seen_at; granted_at is display metadata only. The alert uses the same metadata-only observation boundary as the saved-reset UI and does not call provider APIs during evaluation.

Policy fields live on the upstream identity as saved_reset_auto_redeem_enabled, saved_reset_auto_redeem_trigger_mode, saved_reset_auto_redeem_quota_threshold_percent, saved_reset_auto_redeem_min_blocked_minutes, and saved_reset_auto_redeem_keep_credits. Do not copy provider payloads, raw provider credit objects, raw credit identifiers, titles, descriptions, request ids, redemption request identifiers, client or provider token material, secrets, or account credentials into metadata, logs, docs, or tests. The internal one-shot lease token is not a credential, but it remains non-renderable correlation material and must not be exposed.

Readiness States

Common upstream states are:

State	Meaning
Active	The account is configured and can be considered for eligible Pool traffic.
Paused	The account stays configured, but Codex Pooler should not select it for new traffic.
Refresh due	The account needs credential or quota refresh work before freshness is trusted.
Refreshing	A background refresh is currently updating account evidence or credentials.
Refresh failed	`refresh_failed` means credential or auth lifecycle refresh failed. Treat it as identity recovery work first; quota readiness may still be unknown or stale until credentials are relinked or refreshed successfully.
Reauth required	The account needs operator recovery before it can route work again. Relink with OpenAI OAuth, import replacement credentials, or reinvite the account when those actions are available.
Quota exhausted	Observed quota evidence says the account should not receive matching work until one or more windows reset.
Provider available	No account window is reported, but a fresh current-credential provider observation explicitly reports availability and no stronger account, model, or additional-limit evidence blocks routing. No reset or quota window is inferred.

Readiness is intentionally conservative. Missing, stale, unknown, malformed, credential-mismatched, or exhausted quota evidence can keep an account out of routing even when the card still exists and the account is assigned to a Pool. A no-window account is routeable only through the narrow provider-attested state described above.

When every observation of a quota window has gone stale, for example because usage reads keep failing, the card shows the last value reported for the cycle that is still running. An observation whose reset time has already passed describes a cycle that has ended, so it never sets the displayed value while another observation of the same window reports a reset in the future. An observation whose reset time passed more than 30 days ago is ignored by the card, readiness, alerts and routing, and the scheduled runtime cleanup deletes it, so a window the provider stops reporting eventually leaves the card instead of showing its last value indefinitely. Readiness, alerts and routing stop reading a model or additional-limit window sooner when the provider stops reporting it: once its reset time has passed and the account’s usage reads have kept arriving for a full freshness window after it was last reported, it stops keeping the account off the model, while the observation itself is kept, and reported as above, until the cleanup deletes it. A model or additional-limit window that only the account’s responses report, and that the usage read does not list, can be refreshed only by traffic on that account: once it is older than the freshness window and its last value was below the limit, routing stops waiting for it, and the provider’s refusal decides when it has run out since; a window last seen at its limit keeps blocking until its reset. Whether the cleanup has already run makes no difference to what Codex Pooler shows or routes. Saved-reset automatic-confirmation state keeps an observation only while that state still refers to a reset less than 30 days old.

Provider-Requested Polling Pauses

Codex Pooler reads an account’s usage endpoints on a short cycle to keep quota evidence fresh. If the provider answers one of those reads with 429 Too Many Requests or 503 Service Unavailable and a Retry-After header it can act on, Codex Pooler stops reading that account’s usage endpoints until the time the provider named.

The pause applies to one provider account at one provider host. It covers the alternative usage endpoints, the optional reset-credit detail read, the scheduled reconciliation cycle, a manual refresh, and the confirmation read after a saved reset is applied. Every Codex Pooler replica honours the same pause. It ends on its own when the deadline passes. The provider throttles the account, not one access token, so the pause survives everything that keeps the credentials on the same provider account: a token refresh, including Refresh token, Pause followed by Reactivate, and a re-import or relink of the same account. It ends early only when the upstream account’s stored account id changes to a different provider account; an account imported without an account id keeps the pause only until its credentials are next replaced. Codex Pooler never shortens the interval the provider named, has no upper limit for it, and offers no action to end it early: if the provider is throttling the account, reading again before it asked would bring nothing.

While a pause is running, the account card and the upstream cockpit show Usage polling paused until with the deadline, the time left, and what caused it, for example HTTP 429 with Retry-After. When more than one usage host of the account is paused, the card shows the latest deadline and how many hosts are paused. The provider host itself is never shown.

A Retry-After that pauses usage polling for more than one hour is also written to the application log as a warning (usage polling paused beyond the long-pause threshold), with the account id, the status and the deadline, so an unusual interval is noticed even when nobody is looking at the card.

What a pause does not do:

It is not a quota fact. The account is not marked exhausted, and no reset or window is inferred from it.
It does not block generation requests. Pool routing keeps using quota evidence that is still fresh, and keeps failing closed when evidence is missing or stale, exactly as it does otherwise.
It does not spend or re-apply a saved reset. A reset already applied stays pending until valid evidence arrives.
It does not affect other accounts, or the same account at a different usage host.

If the provider sends no Retry-After, or sends one Codex Pooler cannot read, nothing changes: a 429 still tries the alternative endpoint and a 503 still stops that read, both without a pause. A read already in flight when a pause is recorded is allowed to finish.

An account whose usage reads are paused can look like an account whose evidence is simply going stale. Quota evidence stays usable for routing only for a short freshness window after it was observed, so an account that is not serving traffic leaves routing well before a long pause ends, and reconciliation reports that quota refresh is unavailable. Check the account card first: with the pause notice, the cause is the provider’s instruction and usage reads resume at the deadline shown. Without it, treat the stale evidence as an ordinary refresh problem.

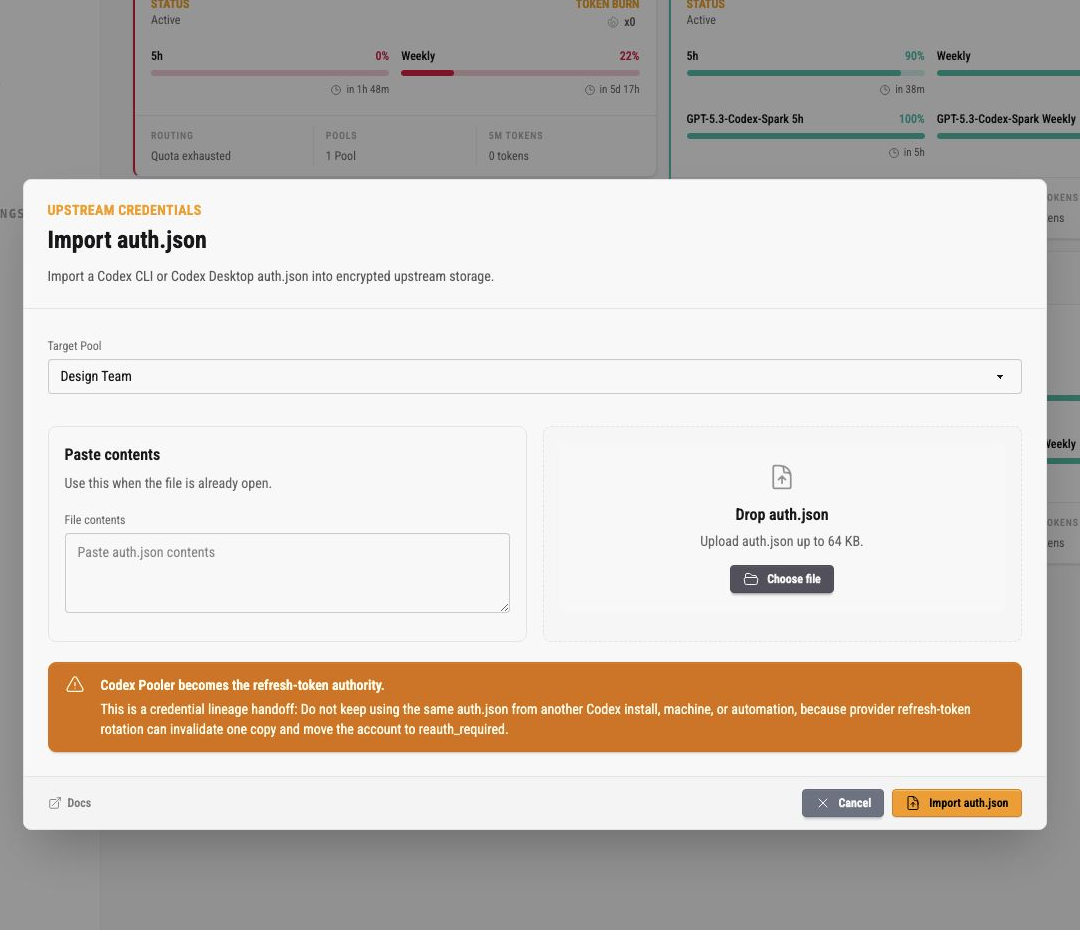

Import auth.json

Click Import to open the upstream credentials dialog when an existing Codex auth.json is the right source of account credentials.

The import dialog asks for:

target Pool, which assigns the imported account to a routing boundary
pasted auth.json contents, when the file is already open
uploaded auth.json, when the file is available on disk

The upload accepts small auth files only. The current UI states a 64 KB limit.

After import, Codex Pooler becomes the refresh-token authority for that account lineage. Do not keep using the same auth.json from another Codex install, machine, or automation. Provider refresh-token rotation can invalidate one copy and move the account into reauth_required.

Export auth.json from the intended signed-in account, then import each user lineage separately. When the auth file returns an OpenAI user subject, Codex Pooler uses it with the account and workspace identifiers to separate multiple credentials from the same account and workspace. The admin UI may show a sanitized subject reference so operators can distinguish those rows, but it never renders the raw subject.

The dialog footer keeps docs on the left and the submit actions on the right. Cancel closes without importing. Import auth.json stores the credential material through encrypted upstream secret storage.

OpenAI OAuth Upstream Linking

OpenAI OAuth upstream linking is an authenticated admin workflow. Use Link on /admin/upstreams to link a new OpenAI upstream account to a selected Pool. Use /admin/upstreams/:id to relink or reconnect the exact upstream identity shown in the cockpit. Relink checks the returned account and workspace claims against the target identity before replacing encrypted credential material. When OpenAI returns a user subject, Codex Pooler also uses that subject to keep same-account, same-workspace upstream credentials distinct.

If OpenAI omits workspace evidence during relink, Codex Pooler keeps the selected cockpit slot only when stored account, email, or sanitized subject proof matches, incoming plan and seat evidence are both present, and that evidence is compatible with known cockpit metadata. Older slots with missing plan or seat metadata can fill those empty fields from the accepted callback. Missing or incompatible evidence still returns identity_mismatch; use the intended provider session or browser profile before retrying.

Browser account choice is controlled by the active OpenAI or Google browser session. Codex Pooler can start the authorization flow, but it cannot force the provider account chooser by itself. Sign in to the intended provider account, or use a separate browser profile, before completing the link or relink.

The browser manual callback workflow is:

open the OAuth link or relink dialog
choose via OAuth (browser)
open the generated OpenAI authorization URL
complete OpenAI authorization in the browser
paste the resulting returned browser URL back into the admin dialog
submit the callback form and wait for the success or safe error state
use Close after the dialog reports that the account was linked or relinked

The returned browser URL is consumed only by the already-authenticated admin page. There is no hosted OAuth callback route or public callback endpoint for this workflow, and there is no /api/admin/* or dashboard JSON API for it. The callback is handled inside the signed-in admin page.

Use the device-code fallback when browser authorization is not practical. The dialog shows the user code and verification URL while the flow is pending, and the page polls only while the operator keeps the dialog open. Device-code authorization must be enabled for Codex on the OpenAI account or workspace. It may be unavailable or denied by account or workspace policy. If device authorization is unavailable or denied, use the browser workflow or ask the workspace admin to enable Codex device-code login.

Immediately after a successful link, the new account is not guaranteed to route traffic. Codex Pooler creates the initial Pool assignment and enqueues account reconciliation to prime quota evidence. That quota refresh can require a token refresh first. If token refresh fails, the account can move to refresh_failed before any user request is routed, and runtime routing excludes it until token refresh succeeds or the credentials are relinked.

Scheduled proactive refresh is based on token expiry and includes busy accounts. It is enabled by default; use System → Gateway → Proactive credential refresh to disable this selection. Already queued proactive jobs recheck that setting before contacting the provider. Manual refresh, lifecycle recovery, and refresh after an upstream authentication failure remain available.

When proactive refresh starts from an active account and fails transiently, the same canonically known, unexpired credential remains active and pinned continuations may keep using it. The failed refresh remains retryable: delays are 60, 120, 240, 480, 960, 1920, and 3600 seconds before the eighth attempt. After exhaustion, scheduled selection observes the six-hour cooldown. Unknown or expired credentials and reactive authentication failures do not receive this preservation; terminal refresh-token rejection still requires reauthentication.

Operators should never paste callback URLs, authorization codes, tokens, cookies, returned browser URLs, raw auth.json, OpenAI provider payloads, raw user subjects, or local credential files into docs, tickets, logs, or evidence. The admin UI may show the one-time authorization URL or device user code during a pending flow, but persisted flow summaries, audit metadata, request logs, tests, and docs stay metadata-only.

Safe OAuth troubleshooting codes:

Code	Operator action
`invalid_callback_url`	Paste the full localhost callback URL from the browser address bar.
`invalid_callback_origin`	Use only the local browser URL produced by the OpenAI flow.
`missing_state`	Restart the OAuth flow from the admin dialog.
`duplicate_callback_param`	Restart the OAuth flow and paste the unedited callback URL.
`missing_callback_result`	Restart the OAuth flow because the callback did not include a usable result.
`provider_denied`	The OpenAI authorization was denied; restart only if the account should be connected.
`invalid_state`	Restart from the current admin dialog; an old or unrelated callback was pasted.
`expired_flow`	Start a new OAuth flow.
`flow_not_pending`	Close the stale dialog state, start a fresh OAuth link or relink flow, and use the latest callback URL.
`stale_flow`	A newer flow superseded this one; use the latest dialog state.
`token_exchange_failed`	Retry once, then inspect OpenAI availability and sanitized provider status.
`identity_mismatch`	Relink with the same OpenAI account, workspace, and sanitized subject reference shown in the cockpit. Missing provider workspace evidence is accepted only for the selected cockpit slot when stored account, email, or sanitized subject proof matches and incoming plan and seat evidence are present and compatible with known cockpit metadata; otherwise retry from the intended provider session. If a different person in the same workspace should be added, link or import that user lineage as a separate upstream identity.
`identity_conflict`	Resolve the duplicate or ambiguous upstream identity before retrying.
`unauthorized_pool`	Confirm the operator can manage the selected Pool.

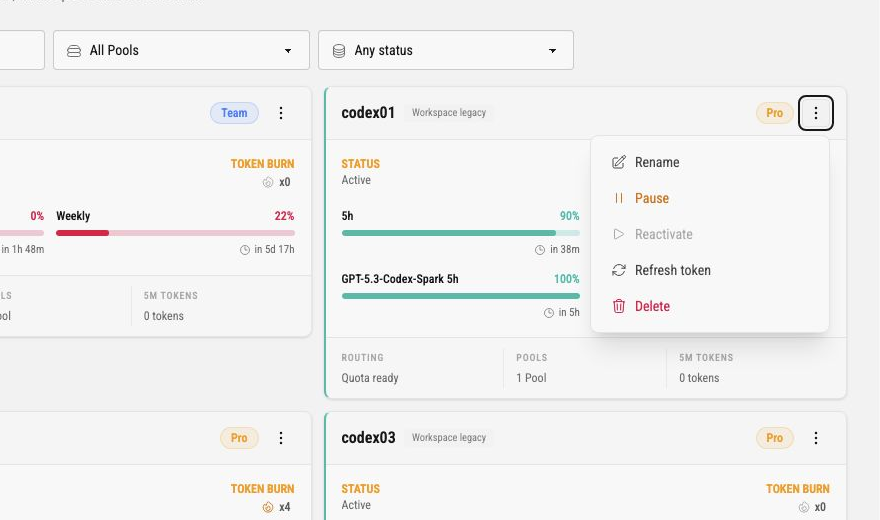

Open the dotted menu on an upstream card for account actions.

The current actions are:

Action	What it does
Rename	Opens a label dialog. This changes the operator-facing account label only.
Pause	Stops the account from being selected for new runtime work while keeping it configured. A successful action queues an immediate catalog refresh for affected active Pools, so availability follows after the refresh runs.
Reactivate	Returns a paused or recoverable account to active consideration when the action is enabled. A successful action queues an immediate catalog refresh for affected active Pools, so availability follows after the refresh runs.
Refresh token	Requests a token-refresh job for the account. Use this when freshness evidence is stale or recovery instructions ask for it.
Provider credits	Opens the provider-credit policy dialog, where the Use provider credits admission policy is saved for the upstream.
Saved resets	Opens the saved-reset dialog with the bank inventory, auto-redemption policy, and the latest account result.
Replace auth.json	Appears for recovery states that can accept replacement account credentials.
Reinvite account	Appears for recovery states where operator-driven reauthorization is the right next step.
Delete	Permanently removes the account, stored credentials, quota evidence, removed Pool assignments, and account-specific statistics. First remove the account from every Pool, including disabled assignments, then type its label to confirm. Shared request accounting remains without the account association.

Some actions are disabled or hidden depending on the account state. For example, Reactivate is not useful while an account is already active, and recovery actions only appear when the account is in a recovery-eligible state. A disabled action states why in its tooltip; on a narrow screen, where there is no hover, the reason also shows as a line under the action.

Accounts that are marked deleted without a permanent removal request appear under Any status and Deleted, so an operator can remove them using the same Delete action. They remain unavailable for routing and recovery actions. Requests already in progress finish before physical removal; large histories are cleaned up in the background. Cleanup reduces its batch size after a database statement cancellation and automatically resumes after temporary database contention without exhausting its retry allowance. The account shows Deletion in progress until it disappears, or Deletion failed - retry Delete if another failure exhausts that allowance. Retrying Delete resumes the remaining cleanup and preserves request history. Permanent deletion cannot be undone.

During cleanup, the account card is dimmed and its controls are disabled beneath a loading message. The account detail shows the same background-cleanup notice. With live updates enabled, the card disappears when cleanup completes and an open account detail returns to the list. If cleanup fails, the busy treatment clears and Delete becomes available for retry. Pausing live updates pauses this display refresh, with an explicit notice; resume updates to see the current result. A historical deleted account without a pending cleanup job does not show the loading treatment.

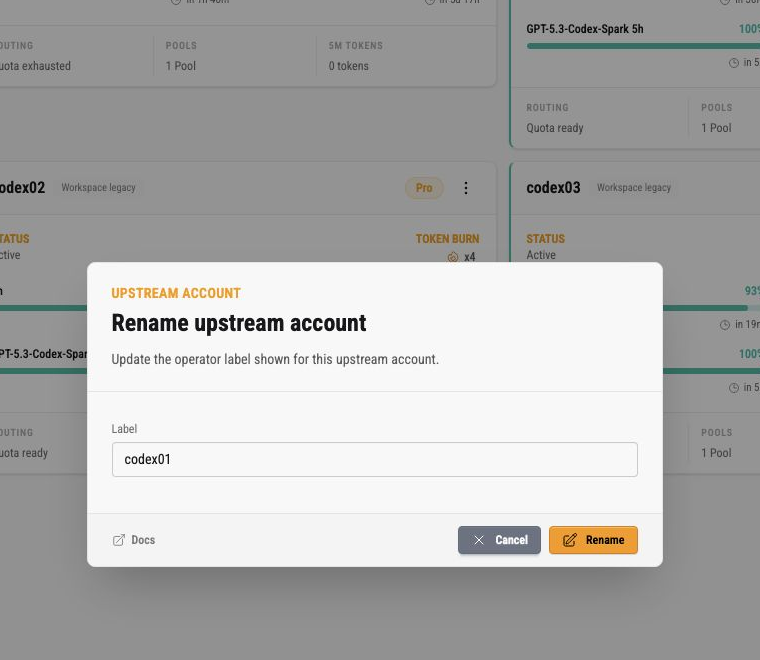

Rename Dialog

Rename opens a small account dialog.

The label is the operator-facing name used in cards and related metadata. It is not the provider account ID, not a Pool API key, and not secret material. Use labels that make operations clear without embedding private customer or credential details.

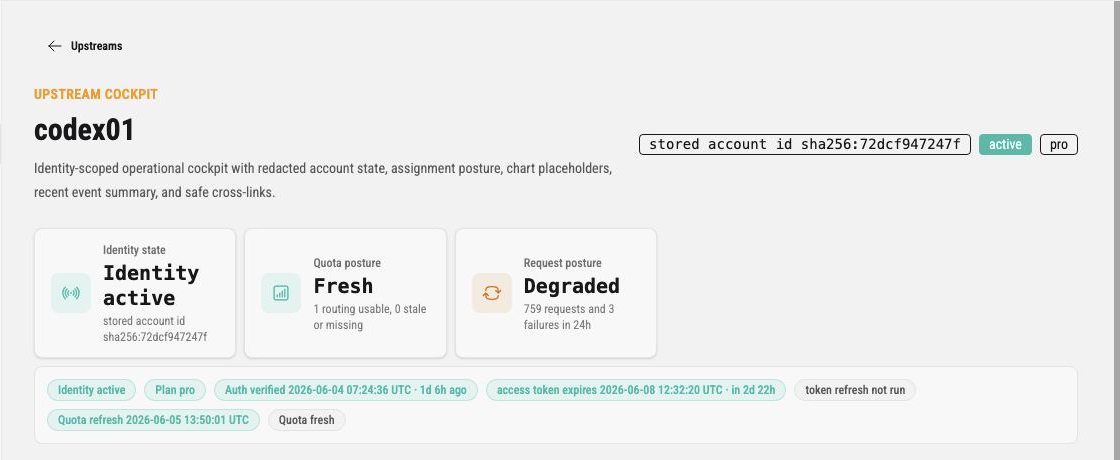

Upstream Cockpit

Clicking an account label opens the upstream cockpit.

The cockpit is the focused detail view for one account, titled Upstream health. The left column identifies the account and lists what can be done to it:

the identity card shows the label, lifecycle state, plan badge, how the account was linked, the stored account identifier hash, the sanitized subject reference, and the workspace
Vitals shows access-token expiry, token refresh state, when authentication was last verified, and the age of the quota refresh and quota evidence
Actions lists Refresh token, OAuth relink for reconnecting the selected upstream identity through OpenAI OAuth, Replace auth.json, Pause or Reactivate, Redeem saved reset when manual redemption is available, Download reset calendar, Rename, Reinvite account, and Delete account. An action that does not apply to the current state is dimmed and marked unavailable

The right column shows how the account serves traffic:

Routing lanes shows a readiness verdict, then one lane per Pool assignment. Each lane passes assignment, health, quota, and circuit gates, and shows its share of the account’s successful requests over seven days
Quota & banked resets shows the account’s quota windows, the provider-credit row, the banked-reset meter, and the auto-redemption policy
Request health shows the request facts and the daily chart described below
Recent activity lists failed requests and account changes, with links to Request logs, Audit logs, and Jobs

A closed circuit leaves an otherwise healthy account Routing ready. Its lane can show Recently recovered after a successful recovery or Recent circuit failure when a recent failure has no later successful close. Circuit recovery in progress describes a lane currently recovering, and Circuit protection active identifies a blocked lane. Recent history retains the affected model and route without renewing its history window on every successful request.

Saved-reset manual redemption is available from the cockpit and from the account-card saved-reset dialog. The summary metric shows the reported count, the actions area shows Redeem saved reset when manual redemption is available, and the saved-reset policy form controls auto redemption, trigger mode, near-limit threshold, natural reset buffer, and resets to keep.

For each current reset expiration, the bank shows banked only when the upstream reported a valid grant time. When that time is unavailable, it shows seen for Codex Pooler’s first discovery of the expiration and uses that discovery only as the display fallback. It never estimates a grant date from the expiration date.

Use it when the card says an account is degraded, stale, exhausted, or needs recovery. The detail page provides more space for routing lanes, quota health, recent events, and related links without exposing raw account secrets.

Request health covers the traffic routed through the account over the last seven days. The facts row shows the last 24 hours: requests, failed requests, requests cancelled by the client, and the failure rate. Requests the client cancelled are counted on their own: they are not failures of the account and are not part of the failure rate, which is computed over the other requests. The routing verdict reports the request posture: degraded when that rate exceeds 5%, and failed when every request that was not cancelled by the client failed. The daily chart shows succeeded, failed and cancelled requests as separate bars, and the error breakdown lists the five most frequent failure codes without client cancellations. Recent activity lists failed and retried requests; a request the client cancelled appears there only when it was retried. See Request logs for what counts as a client cancellation.

Operational Checklist

When an upstream is not routing as expected, check it in this order:

confirm the upstream state is active
confirm it is assigned to the Pool used by the client API key
confirm the Pool itself is active
inspect the routing footer for lifecycle-aware runtime routing readiness across identity state, Pool assignment, credential freshness, quota signals, and request posture
inspect quota bars for exhausted account-level or model-specific windows; if no account bars exist, check whether the routing label says Provider available or reports missing/blocked evidence
confirm token freshness and quota freshness are recent enough to trust; a no-window observation must belong to the current credential generation
open the upstream cockpit when the card shows degraded, stale, or recovery states
use Request logs filtered by Pool or upstream metadata to confirm whether traffic selected this account
use Audit logs when lifecycle, assignment, import, pause, or rename actions changed recently

If an account remains inactive after linking, import, or refresh, treat reauth_required as a credential-lineage problem first. Prefer OAuth relink when browser authorization is practical. Importing the same stale auth.json again may not recover it if another machine already rotated the refresh token.
