Pools

The Pools page is the operator surface for routing boundaries. A Pool groups the upstream accounts that can receive work, the Pool API keys that clients use, routing behavior, and the metadata scope used by request logs and audit logs.

Use this page when you need to answer:

1. which Pools exist
2. whether a Pool is active, disabled, or archived
3. how many upstream accounts and API keys are tied to a Pool
4. how much recent traffic the Pool handled
5. how new runtime requests are routed across eligible upstream accounts

The page is metadata-only. It shows Pool names, counts, routing settings, usage totals, safe status labels, and links to related admin pages. It does not show prompts, responses, files, audio, images, websocket frames, raw bearer tokens, raw Pool API keys, upstream secrets, or Codex auth.json contents.

What a Pool Controls

A Pool is the boundary that a runtime client authenticates against. Clients do not authenticate as one upstream account. They send a Pool API key, then Codex Pooler chooses one eligible upstream account inside that Pool.

A Pool controls:

1. status, which decides whether the Pool can receive new work
2. upstream assignments, which decide which accounts are available to the Pool
3. Pool API key assignments, which decide which client credentials can use the Pool
4. routing strategy, which decides how eligible upstreams are ordered
5. ring size, which bounds the initial shortlist of eligible upstreams
6. compatibility settings, such as OpenAI-style /v1 routes
7. image-generation permission for the supported image generation and edit routes
8. reporting scope for Pool-filtered request logs, audit logs, and traffic summaries
9. per-model serving mode, which chooses Auto, Lite, or Full backend Responses behavior without changing the model id clients use

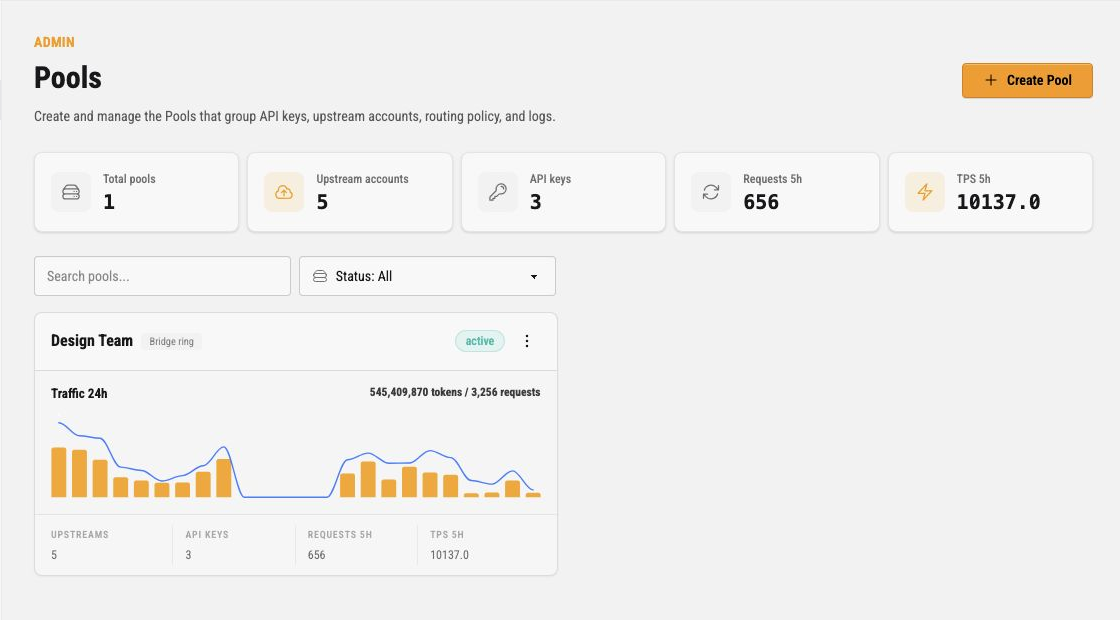

Page Metrics

The metric cards at the top summarize the visible Pool scope for the current operator.

Metric	Meaning
Total pools	Count of Pools visible to the operator. Owners can see management Pools. Assigned admins only see Pools in their reporting scope.
Upstream accounts	Count of upstream accounts linked to the visible Pools. These are the account identities that may become route candidates if active and eligible.
API keys	Count of Pool API keys linked to the visible Pools. These are runtime client credentials, not operator login credentials.
Requests 24h	Runtime request count for the selected traffic window across the visible Pools. The label follows the window: 1h, 5h, 24h (the default), or 7d.
TPS 24h	Tokens per second for the same traffic window. It is computed from total tokens divided by cumulative request latency, so it is a throughput signal, not a wall-clock request rate.

The search box filters Pool cards by text. The status dropdown filters the card list by Pool lifecycle state. The traffic dropdown picks the window for the request, throughput, cost and chart figures: the last hour, 5 hours, 24 hours (the default), or 7 days.

Pool Cards

Each Pool appears as a card. The card header contains the Pool name with its routing strategy underneath, three compatibility icons (/v1 compatibility, image generation, and audio transcription), the lifecycle status badge, and the dotted action menu.

The lifecycle states are:

State	Meaning
Active	The Pool can receive new runtime work if it has an active API key and eligible upstream assignments.
Disabled	The Pool stays configured and visible for operations, but should not admit new runtime work. Reactivate in the card menu makes it active again.
Archived	The Pool is kept for historical reporting and cleanup. Hard deletion is only available after archive. Reactivate in the card menu makes it active again; admin Pool assignments that archiving revoked stay revoked.

The routing strategy label shows the ordering policy used after hard eligibility checks. The default Cache locality profile uses stable scoring and matching cache keys to prefer the same eligible upstream. Every profile preserves automatic session preference, quota evidence, and health safeguards.

Traffic 24h

The chart shows Pool traffic for the selected window, the last 24 hours by default. Its title and the footer labels follow the traffic dropdown:

1. orange bars show token volume by hour
2. the blue line shows request count by hour
3. the total above the chart shows token and request totals for the window
4. the empty state appears when no traffic exists in that window

The chart is a quick health and shape check. Use it to spot traffic bursts, quiet periods, and obvious changes in request volume before moving to Stats or Request logs for deeper investigation.

Card Footer Links

The footer is a compact navigation row for the main related records.

Footer label	Meaning	Link target
Upstreams	Active upstream accounts assigned to the Pool	the Upstreams page filtered to this Pool
API keys	Pool API keys assigned to the Pool	the API keys page filtered to this Pool
Req/TPS 24h	Runtime requests received by this Pool in the selected window, followed by its tokens per second	the Request logs page filtered to this Pool
Cost 24h	Settled cost of this Pool’s requests in the selected window. It is a reporting estimate, not a provider invoice.	the Stats page filtered to this Pool

Each footer cell links to the related page and is highlighted on hover.

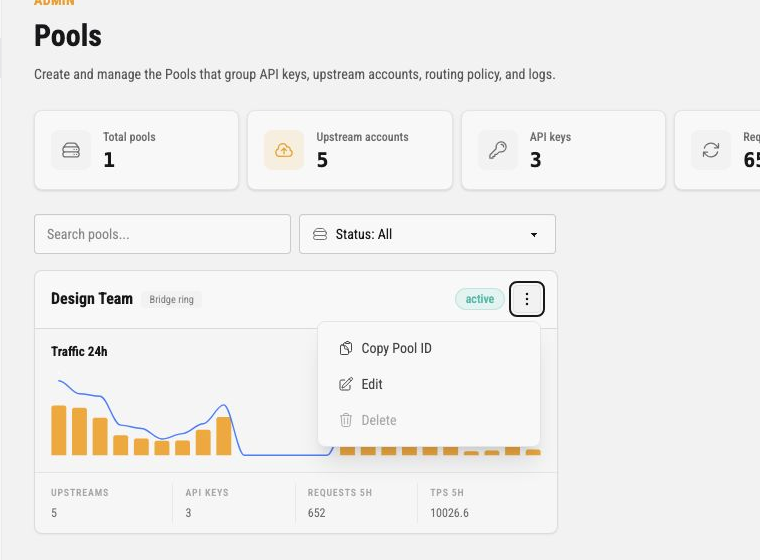

Action Menu

Open the dotted menu on a Pool card for management actions.

The current actions are:

Action	What it does
Copy Pool ID	Copies the Pool UUID to the browser clipboard. Use this for support, logs, or exact filters.
Edit	Opens the Pool configuration dialog for lifecycle, routing, upstream assignments, and API key assignments. Available for an active Pool; reactivate a disabled or archived Pool first.
Reactivate	Shown for a disabled or archived Pool. Makes the Pool active again, so its API keys can admit new runtime work, and records a Pool status audit event. Admin Pool assignments that archiving revoked are not restored; assign them again from the Operators page.
Delete	Hard-deletes a Pool only after it is archived and you have typed its slug, together with its request history, sessions, API keys and upstream assignments. Active and disabled Pools cannot be hard-deleted from the card menu. A Pool with a small history is deleted at once. A Pool with a large history is handed to a background job: the card shows deleting, Delete and Reactivate stay disabled, and the Pool disappears when the job has removed its history. If the job gives up, the card shows deletion failed, and deleting again resumes where it stopped. The Pool deleted audit event is recorded only when the Pool is actually gone.

Use archive before delete when you need to retire a Pool but keep historical request and audit metadata available.

Create a Pool

Click Create Pool to open the Pool configuration dialog.

The create dialog is a four-step wizard:

1. Details
2. Routing
3. Upstreams
4. API keys

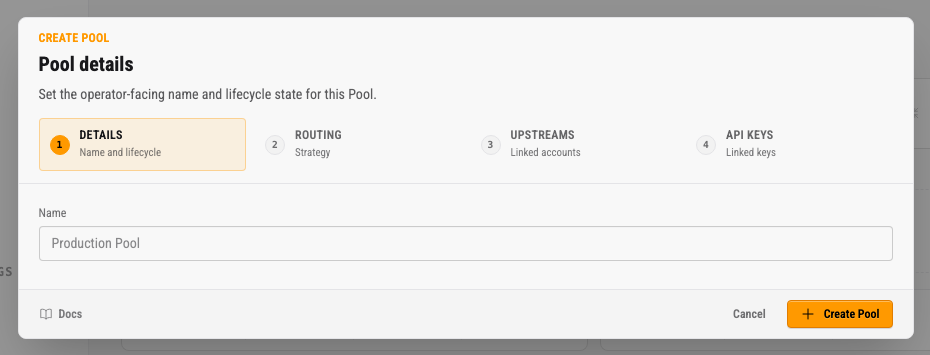

The Details step asks for the operator-facing Pool name. New Pools start from the create defaults; lifecycle status is edited later from the edit dialog.

The dialog footer includes a Docs link on the left and the action buttons on the right. Cancel closes the dialog without saving. Create Pool submits the current configuration.

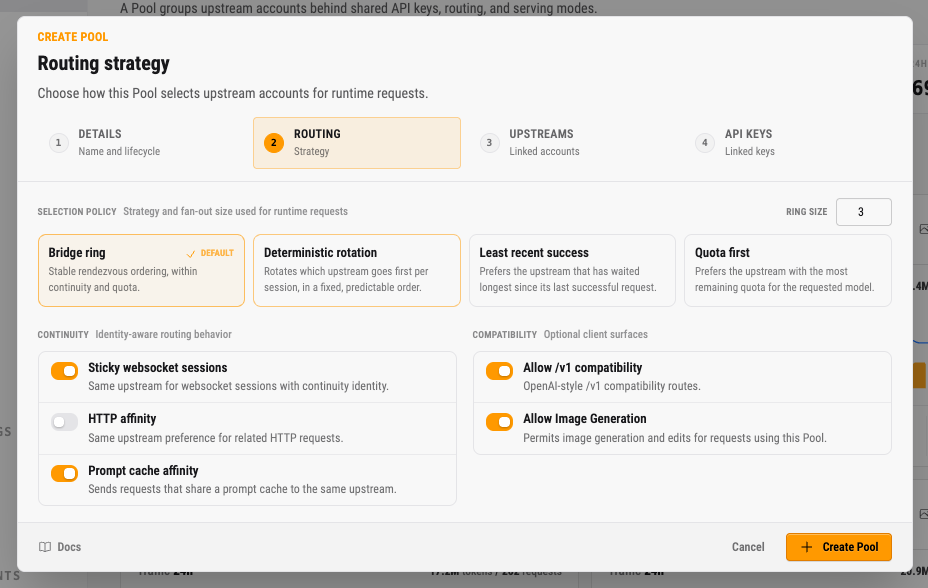

Routing Step

The Routing step controls how the Pool chooses among eligible upstream accounts.

Choose a routing profile and ring size. The How it routes list explains the selected profile on the left; Compatibility stays on the right and follows it on small screens.

Selection Policy

Routing strategy selects one of four complete profiles: Cache locality, Rotation, Least recent success, or Quota first. Each profile chooses how eligible upstreams are ordered for independent work. Strategy does not bypass eligibility. An upstream must still be active, assigned to the Pool, compatible with the requested model and route shape, and usable according to quota and health evidence.

Ring size controls how many ordered upstreams Codex Pooler prepares for a request. A ring size of 3 means the route plan can include up to three eligible upstreams. If the first attempt fails in a retryable way, Codex Pooler can try the next eligible upstream in that plan. This is a shortlist limit for every profile, not a global maximum attempt count: guarded credit or saved-reset recovery can extend the route plan.

How it routes

The selected profile shows four icon rows in the same format: its ordering rule, Keep sessions together, Respect routing safeguards, and its cache behavior. The cache explanation is the fourth row of that list.

• Cache locality prefers the same eligible upstream for matching cache keys. Cache affinity can improve reuse, but does not guarantee a cache hit.
• Rotation varies the starting upstream for independent requests using a deterministic seed. Cache keys do not override rotation; provider caching remains available.
• Least recent success prefers accounts without successes, then the oldest success. Cache keys do not override success history; provider caching remains available.
• Quota first prioritizes usable remaining quota for the requested model. Quota takes priority over cache locality; provider caching remains available.

Continuity is automatic for every profile, with no separate affinity switches. Related turns prefer the session’s current eligible upstream. Without a session, an idempotency key or request identity can preserve the same preference. Required response anchors, file ownership, quota, and health still constrain routing; a response anchor needs the physical upstream websocket connection that produced it.

See Routing strategies for ordering, fallback, and upgrade boundaries.

Compatibility

Allow /v1 compatibility enables OpenAI-style /v1 compatibility routes for clients that use that surface.

Codex Pooler preserves accepted tool-output text through the protocol adapters. There is no Pool compression setting or savings display. Full and Lite keep their own tool-manifest and request-normalization behavior; neither minifies or summarizes accepted tool-output text.

Allow image generation controls these exact authenticated POST routes:

1. /backend-api/codex/images/generations
2. /backend-api/codex/images/edits
3. /v1/images/generations
4. /v1/images/edits

It is on by default for new Pools and for existing routing rows that do not yet have a saved value. When disabled, the runtime returns 403 with code image_generation_disabled after Pool API-key authentication, before request body decompression, parsing, coercion, admission, or upstream dispatch. This keeps a disabled Pool from accepting image payloads at the parser boundary.

Allow Audio Transcription controls POST /backend-api/transcribe and POST /v1/audio/transcriptions. It is on by default for new and existing Pools. Turning it off returns 403 audio_transcription_disabled after authentication and before the audio upload is parsed, work is reserved, or an upstream is called. It applies to both JSON and plain-text transcription output. The setting is independent of image generation and does not enable speech synthesis, audio translation, or Realtime audio.

Change either media permission in the Pool wizard or editor under Compatibility, or use its icon beside the Pool name for a quick toggle. Saved changes apply to subsequent requests across the deployment. Saving the editor writes only the routing and compatibility controls changed in that editor; a control left as it was when the editor opened keeps its current saved value, including a permission changed from the Pool list in the meantime. The upstream-account and API-key selections work the same way: accounts ticked or unticked in the editor are added to or removed from the accounts attached at that moment, and only newly ticked API keys are moved into the Pool.

Upstreams Step

The Upstreams step selects which active upstream accounts are available to the Pool. A checked upstream becomes a Pool assignment. Runtime routing still applies eligibility checks before using it.

Assign more than one upstream when you want load distribution, fallback, quota flexibility, or account maintenance without moving clients to a different API key. Keep an upstream unassigned when it should not receive work for that Pool.

When a saved edit changes upstream assignments for an active Pool, Codex Pooler enqueues an immediate asynchronous catalog sync for that Pool so model source metadata can refresh without waiting for the 30-minute scheduler. The sync does not bypass runtime eligibility checks or change the routing state held by in-flight requests or already-open streams.

Sharing One Upstream Across Pools

Assigning the same upstream account to more than one Pool is supported and is usually what you want: it pools quota and gives each Pool fallback without a dedicated account.

Nobody can read anyone else’s prompts. Codex Pooler never stores prompts, and nothing described below gives any caller a way to retrieve, list or reconstruct content they do not already have. If you are evaluating whether this is safe to use, that is the answer.

The detail worth knowing is about the provider’s prompt-prefix cache, which exists to make repeated prefixes cheaper. That cache matches on content, and it is not partitioned per upstream account the way you might expect: measured against a provider in September 2026, content sent under one upstream account came back as cached input tokens under a different one. Those accounts each had their own account and user identifiers; whether the provider also groups them under one organisation is not something Codex Pooler can see, so treat the boundary as the provider’s to define. Either way this is the provider’s own behaviour and it applies to anyone sharing accounts, with or without Codex Pooler in front of it.

The only thing that behaviour exposes is a yes-or-no answer about bytes you already hold. If you send a prefix and the response reports cached input tokens, you learn that those exact bytes had been sent before by someone sharing the account. You had to possess them to send them, so you learn nothing about content you did not already have, and there is no way to go from a cache hit to anything you were not already holding.

Where that could matter in practice is a shared artifact rather than someone’s typing: if you already have a document, a system prompt or a code file, you could use this to test whether it had previously been sent through the same account. Guessing a colleague’s prompt is not a realistic use of it — provider caches match long exact prefixes, so you would need the text verbatim first.

For a single team or operator this is simply an efficiency and needs no action. If your Pools are separate customers or separate legal entities, and even that yes-or-no answer about a shared file is more than you want between them, give each its own upstream accounts. No Codex Pooler setting changes it, because the cache lives at the provider.

API Keys Step

The API keys step selects existing Pool API keys assigned to the Pool. Assigning a key lets that client credential use this Pool. Creating or rotating the raw key happens on the API keys page, where the raw secret is shown only once.

Use separate Pool API keys for separate clients, environments, or automation boundaries. That makes rotation and investigation easier without changing the Pool’s upstream configuration.

Edit a Pool

Instance owners use the card menu’s Edit action to update an existing Pool. That dialog includes the owner-only Details, Routing, Upstreams, API keys, and Models steps.

An assigned instance admin sees a separate Models action for an assigned active Pool. It opens only the Models panel, where the admin can review and save serving modes for that Pool. Details, routing, lifecycle status, upstream assignments, API-key assignments, and delete actions are not exposed through this path. The save is guarded by the assigned Pool scope and records the normal model-serving audit event.

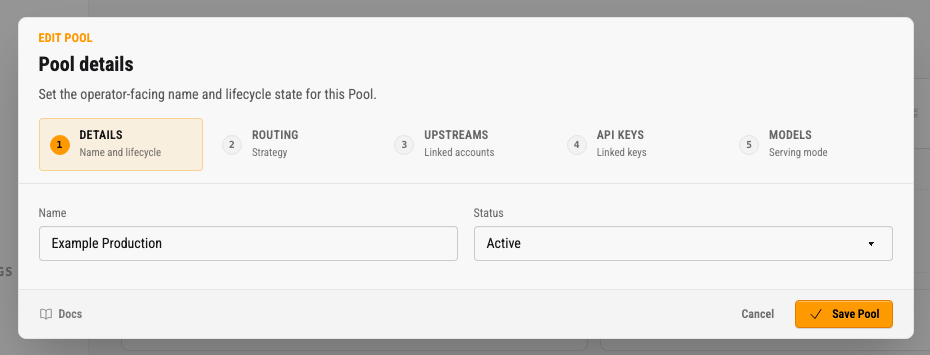

The edit Details step includes the Pool name and lifecycle status. Status is the safest way to retire or pause a Pool without deleting historical metadata. The dialog edits active Pools only: to bring back a disabled or archived Pool, use Reactivate from its card menu, then edit it.

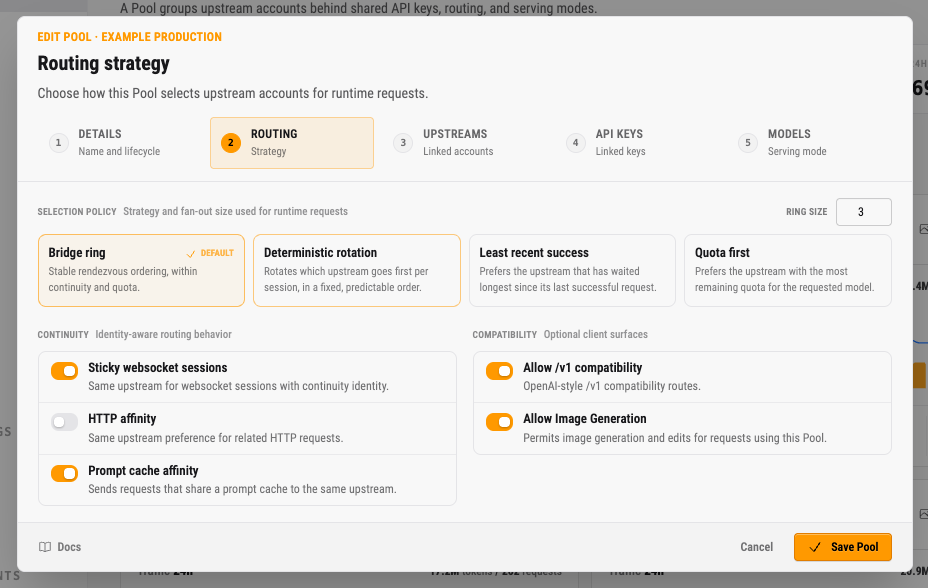

The edit Routing step uses the same routing controls as create. Changes apply to new runtime work after the Pool is saved. In-flight requests and already-open streams keep the routing state they started with.

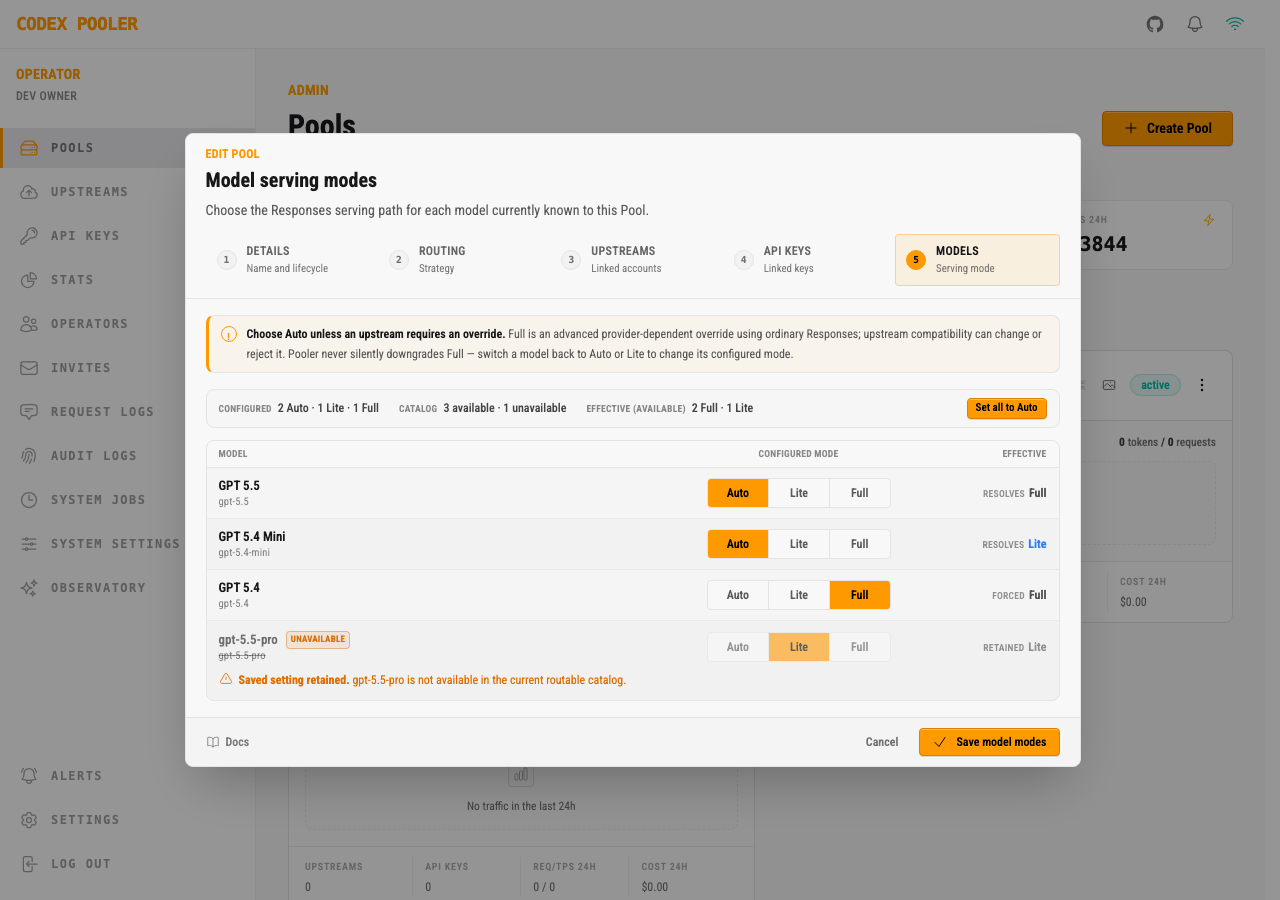

Model Serving Modes

The owner Edit dialog and the assigned-admin Models dialog both use the Models panel to control the serving mode for each model available to the Pool. A saved choice belongs to one Pool-model pair. The same model can therefore use different modes in different Pools, while each Pool continues to expose one client-visible model id.

For what Lite and Full actually change on the outgoing request, and what they deliberately leave alone, see Responses Lite and Full.

Use Auto unless a provider-specific requirement calls for an override:

Mode	Behavior	Operator guidance
Auto	Uses Lite when any health-level routable catalog source reports literal true for Lite support. Routable means active, eligible, health-active, past cooldown, and attached to a visible upstream identity; quota availability for this individual turn is evaluated later and does not change the Pool-model dialect. False, missing, or malformed source values do not count; otherwise the effective mode is Full. For legacy catalog rows without a source-assignment map, a literal top-level use_responses_lite: true selects Lite; every other legacy value selects Full.	Recommended. It follows current catalog evidence as assignments and provider capabilities change.
Lite	Forces the Lite backend request shape for this Pool-model pair.	Use when the selected provider requires the Lite-compatible request shape.
Full	Preserves ordinary Responses options such as the client’s parallel_tool_calls value and removes the Lite marker.	Advanced and provider-dependent. An upstream can reject it now or after a provider change.

If a catalog refresh no longer returns a model, an existing Lite or Full override stays visible as an unavailable row and is marked Saved setting retained. Selecting Auto changes that row to Selecting Auto removes this saved override when you save. Saving removes only that explicit override; sibling model overrides, catalog rows, and upstream assignments remain unchanged. Reopen the Models panel after saving to see the refreshed set of retained and available rows.

Codex, OpenCode, and other supported public OpenAI-compatible clients keep their existing Pool API key, base URL, configuration, and model id. Codex Pooler changes only the backend request selected for that Pool-model pair. GET /v1/models remains unchanged and does not expose serving-mode fields; public POST /v1/responses/compact remains unsupported.

Masked Images edits need an eligible Full Responses host with image-input support. Auto can supply one when the catalog resolves that host to Full; there is no need to force every model to Full. An exact requested model explicitly configured Lite remains unavailable for masked edits, and the adapter does not override that setting. Without an eligible Full host, masked edits return 400 unsupported_parameter (mask) before dispatch or accounting reservation. Unmasked native Images requests continue to use their existing route. See Responses Full and Lite.

Full never silently downgrades. An ordinary Responses HTTP failure under the explicit Full override keeps the upstream status and a server-owned message, and on a non-rate-limit 4xx it relays the same bounded rejection type, code, and param the attempt already records; the provider message, body, and extra fields are not returned. Request-log detail drawers show the configured, effective, and source labels when each request or attempt has a complete validated snapshot; a non-rate-limit 4xx is classified as upstream_status, a 429 as upstream_rate_limited, and an ordinary 5xx as upstream_status. The error code does not record the serving mode, so the same provider rejection carries the same code under Auto, Lite, and Full, and the mode is read from the serving-mode snapshot instead. They do not retain the upstream error text, request payload, prompt, response body, or credentials. Auto, Lite, compact or unrelated routes, and established model-unavailability responses keep their existing response behavior. Review provider support, then explicitly select Auto or Lite and retry as a new request or turn.

Serving modes are database-backed Pool configuration. There is no global environment variable or Helm value for them.

Codex Catalog Entries Left Out

Codex reads the whole Pool catalog as one document: a single entry it cannot decode (a required field missing or null, an unknown enumeration value, a fractional number where it expects an integer) makes it reject the new response. With an explicit model_catalog_url, it never substitutes bundled models. Current qualified clients preserve an existing same-identity snapshot and its original freshness on transient fetch or decode failures; access rejection invalidates it, and a successful empty catalog replaces it. Without a usable cached snapshot, a rejected response leaves the picker empty. For Codex clients covered by the decoder contract, the catalog is checked entry by entry and an entry that release cannot decode is left out, so the client keeps every other Pool model. The version is the one in the Codex User-Agent, which Codex sends on the catalog request and on every turn; the client_version query parameter is not read. Prereleases count by their whole version. Clients outside that contract, /v1/models, and clients whose User-Agent is not a Codex build’s receive the catalog unchecked, because the decoder rules are not known to hold for them.

The current verified decoder window is Codex 0.154.0 through 0.169.0, including prereleases with a whole version inside that range. A newer client receives the unchecked catalog until its released decoder is qualified; updating the outbound client identity does not extend this window by itself.

A left-out model is not advertised to that client, so it is missing from the Codex model picker. It stays routable: a request that names the model is routed and served as usual, because routing does not read the served catalog.

Each omission is logged as a warning on every catalog fetch that leaves an entry out:

codex catalog entry left out: the requesting client cannot decode it pool_id=<pool id> model=<model id> fields=<field paths>

The line names the Pool, the model, and up to ten field paths that fail, never a value. A model id outside letters, digits, ., _ and - is shown as a sha256: fingerprint. A left-out entry usually means the provider catalog changed shape or a synced entry is incomplete. The next catalog sync replaces the entry; if the warning persists after it, compare the named fields with a current Codex release before changing anything else. Codex Desktop and the IDE extension report the version of the Codex core they bundle, so the same rule applies to them.

Operational Checklist

When a Pool is not behaving as expected, check it in this order:

1. confirm the Pool status is active
2. confirm the client is using an active Pool API key assigned to this Pool
3. confirm the Pool has active upstream assignments
4. confirm those upstreams are not paused, disabled, archived, or reauth-required
5. confirm the requested model and route shape are supported by the assigned upstreams
6. inspect Requests, TPS, and the Traffic chart for changes in load, switching the traffic window to compare recent hours with the last day or week
7. open Request logs filtered from the card footer for request-level metadata
8. for tool-output delivery questions, compare the selected transport, serving mode, request outcome, and attempt outcome; request logs do not retain tool-output content
9. for explicit Full failures, inspect upstream_status for non-rate-limit 4xx and for 5xx or upstream_rate_limited for 429, the upstream status, and the three bounded serving-mode labels, which are what identify the failure as a Full one, before selecting Auto or Lite
10. check Audit logs when a Pool, upstream assignment, API key, routing setting, or model serving mode changed recently

If all upstreams fail eligibility, routing cannot use them even if the Pool card looks active. The card shows Pool-level configuration, while final routing also depends on upstream status, model support, quota evidence, route health, and continuity constraints.
